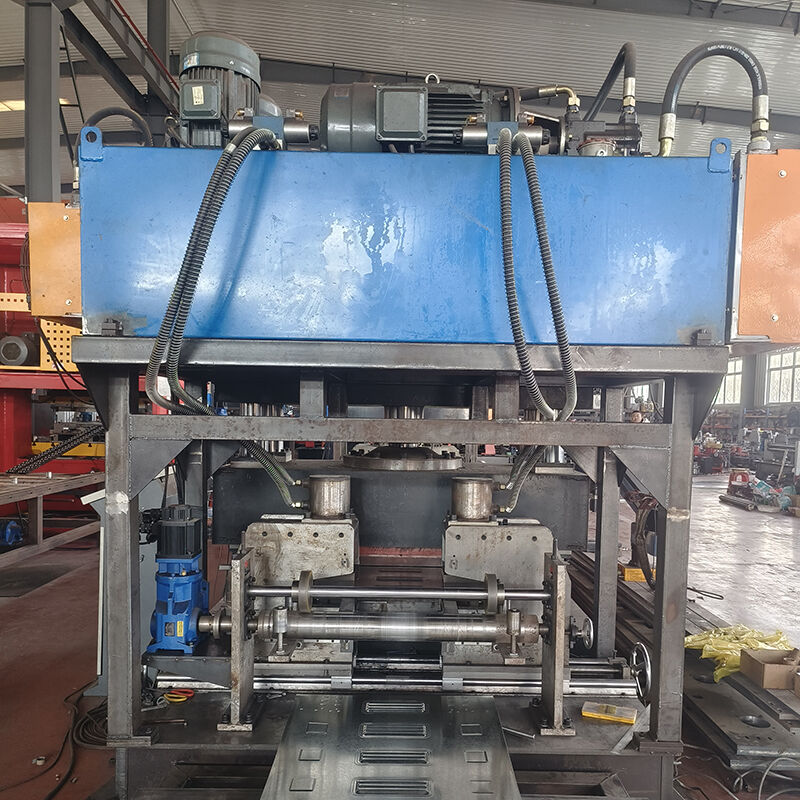

Full Automatic Cable Tray Roll Forming Machine with High Stability and 200-600mm Material Width

This high-efficiency cable tray making equipment streamlines the production of cable tray systems with automated welding capabilities and precision manufacturing processes.

The cable molded bridge frame manufacturing process consists of four key stages:

• Raw Material Pretreatment: Cold rolled steel sheet or galvanized sheet undergoes surface rust removal and sandblasting treatment, followed by epoxy resin or polyester powder coating
• Mold Design & Manufacturing: Custom molds are created according to bridge specifications with micrometer-level precision for consistent product dimensions
• Compression Molding: Pre-treated sheets are pressed at 180-220°C and 15-20MPa pressure for 10-15 minutes to ensure complete material flow and mold cavity filling
• Post Processing & Testing: Cooling, edge cutting, punching, and comprehensive testing including salt spray and insulation resistance tests

This cable tray making machine is essential for companies requiring cable tray production equipment. Its fully automatic capabilities and high stability enable production of high-quality cable trays in various sizes and shapes to meet specific client requirements. Ideal for the electrical industry, it produces cable trays used for organizing and distributing cables in commercial and industrial settings.

The cable tray machine is carefully packaged with protective materials in sturdy cardboard boxes to ensure safe delivery. We offer both domestic and international shipping via reliable carriers, with competitive rates and timely processing.
