Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type

Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type

MOQ: Negotiable
Price: Negotiable
Payment Terms: TT
Detail Information
Place of Origin:
Hebei, China
Certification:
ISO9001
Core Components:
Pressure Vessel, Motor, Bearing, Pump, Gearbox, Engine, PLC
Type:
Full- Automatic
Feature:
High Stability
Cutting Type:
26 Rollers
Profiles:
Cable Tray Making Machine
Advantages:
Easy Operation
Drive Of Way:
Chain Drive
Dimension(L*W*H):
40*2.8*2.3m
Working Speed:
8-9 Meters /min
Packaging Details:
According to customer needs
Highlight:

custom cable tray roll forming machine

,

custom cable tray forming machine

,

hydraulic cable tray forming machine

Product Description
Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type
Key Specifications
Core Components
Pressure Vessel, Motor, Bearing, Pump, Gearbox, Engine, PLC
Type
Full-Automatic
Feature
High Stability
Cutting Type
26 rollers
Profiles
Cable Tray Making Machine
Advantages
Easy Operation
Drive System
Chain Drive
Dimensions (L×W×H)
40×2.8×2.3m
Working Speed
8-9 meters/min
Product Overview

Our custom cable tray roll forming machine delivers exceptional efficiency by automating nearly every aspect of the cable tray production process. It precisely bends and welds steel plates to create uniform, consistent products with high accuracy. The continuous operation capability significantly boosts productivity, enabling manufacturers to increase output while maintaining quality standards.

Advanced Features
  • Integrated molding system completes the entire production process without manual intervention
  • Performs multiple operations including unwinding, leveling, clamping, punching, cutting, forming, and receiving
  • Advanced automatic control system ensures precise monitoring of production stages
  • Maintains consistent product dimensions to meet exact specifications
  • Hydraulic cylinder cutting system for accurate, precise punching
  • Chain drive mechanism provides smooth, stable operation
Technical Specifications
Parameter Value
Type Full-Automatic
Feature High Stability
Core Components Pressure Vessel, Motor, Bearing, Pump, Gearbox, Engine, PLC
Application Cable Tray Manufacturing
Device Type Forming Machine, Punching Machine, Cover Plate Machine
Dimensions Custom
Profiles Cable Tray Making Machine
Output Cable Tray Panels
Drive System Chain Drive
Cutting Type Hydraulic Cylinder
Applications

This specialized cable tray machine is designed for efficient cable tray manufacturing. The versatile system produces various cable tray types for multiple applications. Our complete fabrication solution includes forming, punching, and cover plate machines for comprehensive production capabilities.

Product Images

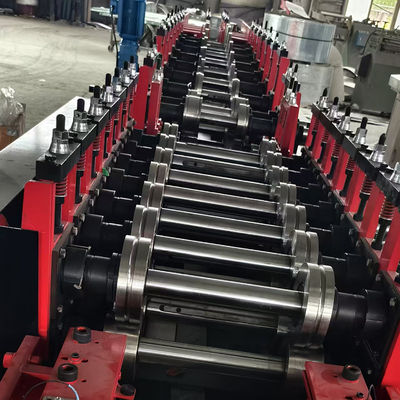

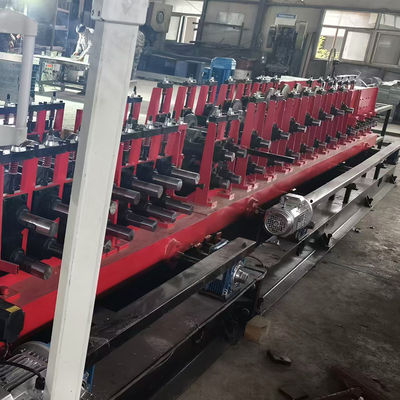

Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type 0 Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type 1 Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type 2 Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type 3 Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type 4 Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type 5 Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type 6 Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type 7 Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type 8 Custom Cable Tray Roll Forming Machine With Profiles And Hydraulic Cylinder Cutting Type 9
Packaging & Shipping

The cable tray machine is securely packaged in wooden crates to prevent transportation damage. Each crate includes clear labeling with product details and handling instructions. All necessary components and accessories are included in the package.

We ship via reputable carriers and provide tracking information. Shipping costs are calculated based on destination and package weight.

Frequently Asked Questions
Where is the Cable Tray Machine made?
The Cable Tray Machine is manufactured in Hebei, China.
Is the Cable Tray Machine certified?
Yes, the machine is ISO9001 certified.
What is the minimum order quantity?
Minimum order quantities are negotiable.
What is the machine's price?
Pricing is negotiable based on configuration and order volume.
What are the packaging details?
Packaging can be customized to meet customer requirements.
What is the delivery time?
Standard delivery time is 15-30 working days.
What are the payment terms?
We accept TT (Telegraphic Transfer) payments.
