High Stability Full Automatic Cable Tray Machine For Precise Profiles Production Hydraulic Cylinder Cutting

High Stability Full Automatic Cable Tray Machine For Precise Profiles Production Hydraulic Cylinder Cutting

MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Advantages:

Easy Operation

Feature:

High Stability

Voltage:

380V, 440V, 220V

Panels Can Be Made:

Cable Tray

Core Components:

Pressure Vessel, Motor, Bearing, Pump, Gearbox, Engine, PLC

Cutting Type:

Hydraulic Cylinder

Dimension(L*W*H):

40*2.8*2.3m

Drive Of Way:

Chain Drive

Rollers:

26 Rollers

Cutting Blade Material:

H 13 High Grade Steel HRC

Packaging Details:

According to customer needs

Highlight:

automatic cable tray machine

full automatic cable tray machine

automatic cable tray roll forming machine

Product Description

High Stability Full Automatic Cable Tray Machine For Precise Profiles Production Hydraulic Cylinder Cutting

Key Features

Operation: Full Automatic

Stability: High Stability Design

Voltage Options: 380V, 440V, 220V

Production Capacity: Cable Tray Panels

Technical Specifications

Attribute	Value
Core Components	Pressure Vessel, Motor, Bearing, Pump, Gearbox, Engine, PLC
Cutting Type	Hydraulic Cylinder
Dimensions (L×W×H)	40×2.8×2.3m
Drive System	Chain Drive
Rollers	26 rollers
Cutting Blade Material	H 13 High Grade Steel HRC

Product Description

Our cable tray rolling and forming machine represents the pinnacle of modern cable tray production technology. Designed to transform steel plates into precisely formed cable trays through automated welding processes, this equipment delivers exceptional production efficiency while maintaining superior product quality.

The machine's advanced automation significantly reduces manual labor requirements while minimizing material waste and production time. The result is consistently high-quality, durable cable trays that meet the exacting standards of modern industrial applications.

Integrated Production Process

The machine performs the complete cable tray manufacturing sequence including:

Unwinding and leveling of raw materials
Precision clamping and punching
Accurate cutting and forming
Automated receiving of finished products

Control System

An advanced PLC-based control system ensures precise operation at every production stage, guaranteeing dimensional accuracy and consistency across all manufactured cable trays.

Applications

This versatile cable tray production machine serves multiple industries including:

Telecommunications infrastructure
Power distribution systems
Commercial and industrial construction

Capable of producing cable trays in various sizes and configurations, the machine adapts to specific customer requirements with ease.

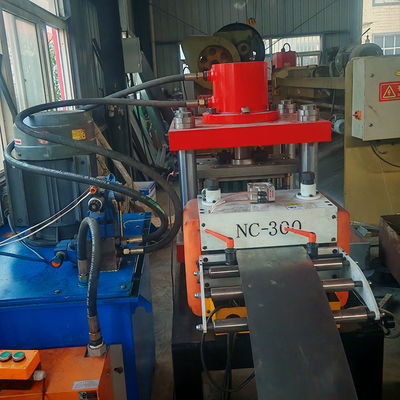

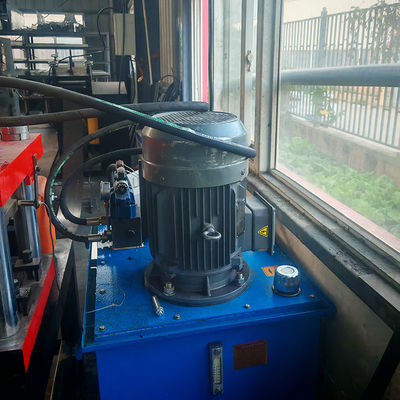

Product Images

Packaging & Shipping

Packaging

Sturdy wooden crate construction
Protective plastic wrapping against moisture
Internal foam padding for shock absorption

Shipping Options

Sea or air freight available
Cost based on dimensions and destination
Tracking number provided
Estimated delivery: 2-4 weeks

Frequently Asked Questions

Where is the Cable Tray Machine made?

Manufactured in Hebei, China

Is the Cable Tray Machine certified?

ISO9001 certified

What is the minimum order quantity?

Negotiable based on requirements

What are the payment terms?

Telegraphic Transfer (TT)
