Custom Dimension Cable Tray Machine Driven by Chain Drive for High Stability on Discount Sale

Custom Dimension Cable Tray Machine Driven by Chain Drive for High Stability on Discount Sale

MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Feature:

High Stability

Panels Can Be Made:

Cable Tray

Type:

Full- Automatic

Device Type:

Forming Machine, Punching Machine, Cover Plate Machine

Use:

Cable Tray Manufacturing

Voltage:

380V, 440V, 220V

Cutting Type:

Hydraulic Cylinder

Dimension(L*W*H):

Custom

Cutting Blade Material:

H 13 High Grade Steel HRC

Rollers:

26 Rollers

Packaging Details:

According to customer needs

Highlight:

custom cable tray machine

custom cable tray roll forming machine

chain drive cable tray machine

Product Description

Custom Dimension Cable Tray Machine with Chain Drive for High Stability

Key Features

Full-automatic operation for cable tray manufacturing
Chain drive system ensures high stability
26 rollers for smooth forming process
Hydraulic cylinder cutting for precision
Versatile machine combining forming, punching, and cover plate functions
Custom dimensions available

Technical Specifications

Attribute	Specification
Type	Full-Automatic
Device Type	Forming Machine, Punching Machine, Cover Plate Machine
Material	High Tensile Steel
Material Width	200-600mm
Drive System	Chain Drive
Rollers	26 rollers
Cutting Type	Hydraulic Cylinder
Cutting Blade Material	H 13 High Grade Steel HRC
Voltage	380V, 440V, 220V
Dimensions (L×W×H)	40×2.8×2.3m (Custom available)
Core Components	Pressure Vessel, Motor, Bearing, Pump, Gearbox, Engine, PLC

Product Description

Our cable tray rolling and forming machine revolutionizes cable tray manufacturing by automating the entire production process from unwinding steel plates to forming completed cable trays. This full-automatic system significantly improves production efficiency while reducing manual operations and costs.

Advanced Features

The integrated molding machine handles the complete workflow including unwinding, leveling, clamping, punching, cutting, forming, and receiving. The advanced automatic control system ensures precise operation at each stage, maintaining consistent product dimensions and quality.

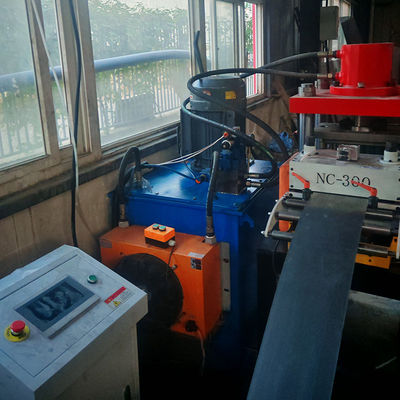

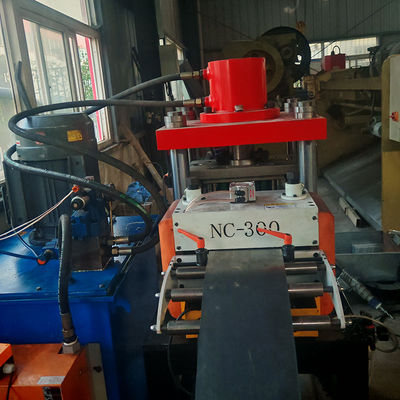

Product Images

Packing & Shipping

The cable tray machine is securely packaged in custom wooden crates to prevent transportation damage. All components are included and properly labeled. We work with reputable shipping companies and provide tracking information. Delivery typically occurs within 15-30 work days.

Frequently Asked Questions

Q: What is the place of origin?

A: Manufactured in Hebei, China.

Q: Is the machine certified?

A: Yes, ISO9001 certified.

Q: What is the minimum order quantity?

A: MOQ is negotiable.

Q: What is the price?

A: Pricing is negotiable based on configuration.

Q: What are the delivery terms?

A: Packaged to customer requirements, delivered in 15-30 work days with TT payment terms.
